All-new design
Clutches for cruising and racing yachts,
offering a holding power of up to 550 kgs
 Modern,
High-Performance Materials
Manufactured from modern lightweight materials,
the D0550 moulded parts are from high-grade plastics which
are strong, light, and impact resistant. Cams and bases
are from marine grade aluminum, "Spectro" anodised
for long life in the harsh marine environment.
True Clutch Mechanism
This true clutch mechanism allows line to be
adjusted through the unit in the closed, locked position
with minimal slippage; release under load is positive
and requires little effort.
The mechanism's opening and closing action
is precise and easy to operate, even with cold wet hands.
A positive handle lock in the closed position is also
featured.
Kind to Lines
The clutch's cam and base, manufactured from
high grade extruded aluminum, feature a specially tempered
tooth design which allows for maximum grip with minimal
slippage, while being kind to your lines.
Bolt-Together Construction For Straightforward
Servicing
The D0550 clutch range features the advantage
of a bolt-together construction which allows for ease
of servicing and replacement of parts. A full range of
components is available.
Ergonomically Designed Handle
The handle is strong and easy to grip, with a
positive smooth lock and unlock action.
A unique feature of this new design is the
removeable insert on the top face of the handle. These
inserts are available packaged separately with a selection
for both cruising and racing yachts.

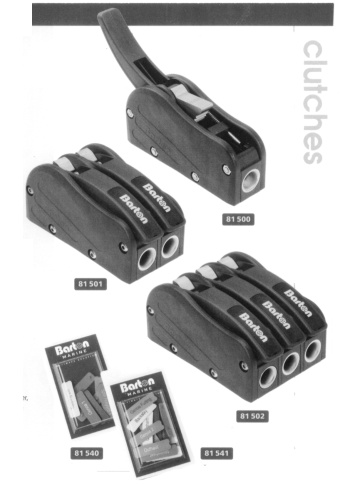

81540 "Cruiser" Insert
Pack contains Main, Genoa 1, Spin Halyard 1,
Topping Lift, Spin Pole Up, Spin Pole Down, Blank
81540 "Racer" Insert Pack
contains Reef 1, Cunningham, Reef 2, Kicker, Mainsheet,
Genoa furling, Genoa 2, Spin Halyard 2, Backstay, Outhaul,
Downhaul, Blank.
|
